Available
- Dimensions
- 192 x 192 x 40 mm
- Type

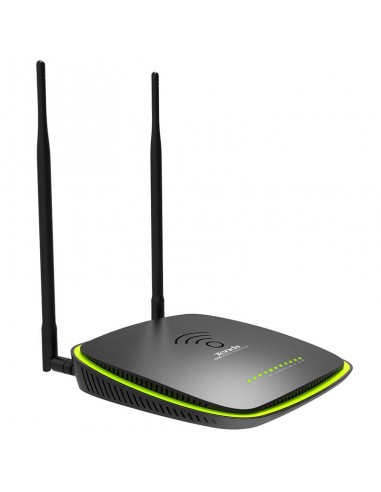

- Modem Routeur Wi-Fi 1200Mbps
- Modem
- Oui
- Standard & protocole
- IEEE 802.3, 802.3u, 802.3ab, Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1, ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis), ITU-T G.992.5 Annex A/M, ATM Forum UNI3.1/4.0
- Taux sans fil
- 5GHz: Up to 900Mbps - 2.4GHz: Up to 300Mbps
- Fonction de base
- ADSL2+ Modem Router, Wireless Router
- Bandes de fréquences
- 2.4GHz & 5GHz
- Antennes
- 7dbi External Omni directional, Detachable antennas × 2 - 3dbi Internal antenna × 2
- Ports
- RJ11 × 1, USB2.0 × 1, Power Socket × 1, 10/100/1000Mbps auto-negotiation (Auto MDI/MDIX) LAN ports × 3, 10/100/1000Mbps auto-negotiation WAN/LAN Interchangeable port (Auto MDI/MDIX) × 1
- Bouton
- 1 × Reset/WPS button - 1 × On/Off Switch
- Voyants d'état
- Power, SYS, Internet, DSL, WLAN, WPS, LAN (1,2,3,4), USB
- Prise en charge IPv6
- IPv6 and IPv4 dual stack
- VPN
- VPN Passthrough (PPTP/IPSec/L2TP)
- Caractéristiques
- DDNS Dyn-DNS & NO-IP, MAC Clone, Parental Control, Backup & Restore configurations, Firmware upgradeable via browser, NAT, Static Routing, Logs, Port/Tag VLAN, IPTV, USB Sharing, Bandwidth Control (IP), Internet Connection Type (Dynamic IP, Stati
- Fonctions de sécurité
- 64/128-bit WEP, WPA / WPA2 -PSK with TKIP/AES encryption, WPS, MAC Filtering
- Default Settings
- Login IP address: 192.168.1.1 Connection Mode: ADSL Internet Connection Type: PPPoE 2.4G SSID:Tenda_xxxxxx 5G SSID: Tenda_5G_xxxxxx (""xxxxxx"" represents the last six characters in device's MAC address) 2.4G Channel: Auto 5G Channel: 36 DHCP IP Pool: 19
- Source d'alimentation
- Input: 100-240V 50/60MHz - Output: 12V DC 1.5A
- Contenu de l'emballage
- D1201 Wireless AC1200 ADSL2+ Dual Band Modem Router x 1, 7dbi External Omni directional, Detachable antennas × 2, Power Adapter x 1, Ethernet cable (RJ45) x 1, Telephone cable ( RJ11)× 2, ADSL Splitter x 1, Resource CD x 1, Quick Installation Guide x 1
D1201
