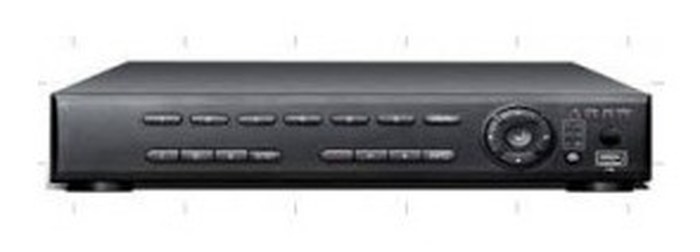

DVR BXS-7016N PORTS HDMI FULL D1

ModelBXS-7004DBXS-7008DBXS-7016DCompression H.264 Video format NTSC / PAL Video input 4×BNC(1.0Vp-p, 75Ω) 8×BNC(1.0Vp-p, 75Ω) 16×BNC(1.0Vp-p, 75Ω) Video output 1×BNC(1.0Vp-p, 75Ω); 1×VGA 1×BNC(1.0Vp-p, 75Ω);VGA; SPOT ;YPbPr Output resolution VGA:1280x1024 YPbPr:1920x1080 D1 record frame rate 100fps(PAL)/120fps(NTSC) 50fps(PAL)/60fps(NTSC) 100fps(PAL)/120fps(NTSC) CIF record frame rate 100fps(PAL)/120fps(NTSC) 200fps(PAL)/240fps(NTSC) 400fps(PAL)/480fps(NTSC) D1 playback frame rate 100fps(PAL)/120fps(NTSC) 50fps(PAL)/60fps(NTSC) 100fps(PAL)/120fps(NTSC) CIF playback frame rate 100fps(PAL)/120fps(NTSC) 200fps(PAL)/240fps(NTSC) 400fps(PAL)/480fps(NTSC) Frame rate of network transmission >10 fps /channel @ CIF resolution Audio input: RCA×4; output: RCA×1 Alarm mode Disk full alarm; motion detection alarm; video loss alarm Recording mode Timing / Motion detection Network port 100 M RJ-45 HDD 1× 2000G DVD-RW Support external USB DVD-RW PTZ port RS-485 Remote control Supported Mouse Supported USB port 2×host 2.0 Power supply 12V/3A Operating temperature -10℃"+50℃ Operating humidity 10%"90% Gross weight 3kgs with package Dimension 338mm(L)×250mm(W)×65mm(H)
