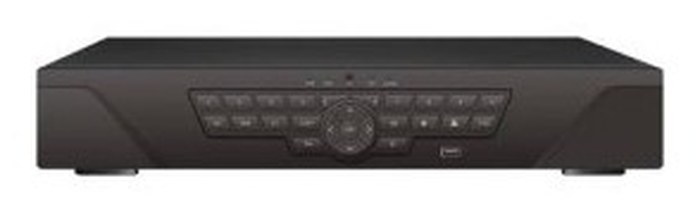

DVR BXS-7016N PORTS HDMI FULL D1

Model Feature BXS-7004 BXS-7008 BXS-7016 CH &Compression 4CH H.264 8CH H.264 16CH H.264 Video format NTSC/PAL Video input 1.0V p-p/75Ω, BNC×4 1.0V p-p/75Ω,BNC×8 1.0Vp-p/75Ω, BNC×16 Video output 1.0V p-p/75Ω, BNC×1, VGA Display Resolution D1:720×576 (PAL) / D1:720×480 (NTSC) Record Resolution CIF:352×288 (PAL) / CIF:352×240 (NTSC) Display Frame Rate 4×25 (PAL) ,4×30 FPS (NTSC) 8×25 FPS (PAL) ,8×30 FPS (NTSC) 16×25 FPS (PAL) ,16×30 FPS (NTSC) Record Frame Rate CIF:100 FPS (PAL) / CIF:120 FPS (NTSC) CIF:200 FPS (PAL) / CIF:240 FPS (NTSC) CIF:400 FPS (PAL) / CIF:480 FPS (NTSC) Audio input 8k8bit, 4CH record Audio output 8k8bit, 1CH record Alarm Mode Sensor alarm, motion detection alarm, video loss alarm, HDD full pre-alarm Record Mode Manual/ Sensor / Timer / Motion detection Simplex/multiplex Multiplex RJ45 PTZ control RS485 USB Port One USB2.0 host and one USB 1.1 host for mouse, backup and upgrade HDD Info Support one 1 Terabyte SATA HDD and ecternal USB HDD CD/DVD R/W NO Power supply 12V 4A 12V 5A Weight About 3.5Kg with package Dimension(mm) 335mm(L) ×250mm(W) ×65mm(H)
